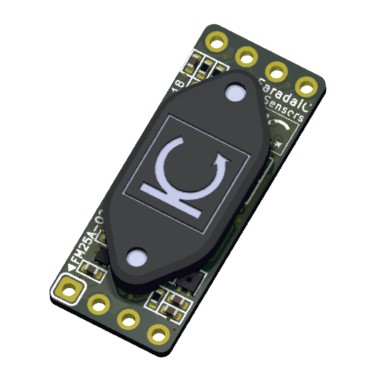

The Faraday-Ox™ Oxygen (O2) Gas Sensor module is designed for efficiency and practicality, and is characterized by its compact size and ultra-low power consumption. Pulsed mode operation further reduces power consumption without compromising performance.
This module simplifies integration through a connector-based installation system, avoiding the need for soldering, and is factory calibrated for immediate and reliable use.
Within the module, integrated humidity and temperature sensors provide vital environmental compensation, enhancing the accuracy of oxygen measurements. Additionally, each module is equipped with mechanisms to compensate for sensor aging, ensuring consistent performance over time.
The solid electrolyte in this oxygen sensor does not dry out even at high temperatures of up to 85°C and can be stored for several years. The tiny design delivers extremely fast measurement results.”
The development kit is completed with a standard USB-C connection and a GUI compatible with standard PC browsers.
Key Properties:
- Smallest O2 Sensor
- Lowest cost in high volumes
- Fastest – 1.0 – 1.5 sec
- Low Power – <5µW when on
Additional Properties:
- Solid-state oxygen gas sensor (lead-free)
- Electrochemical sensing on a chip
- 0…3%, 3 – 15%, 15 – 25% & 25 – 100% O2 sensor range
- Other concentration ranges and gases are also available for other applications
- Small x 2.5 mm footprint (5 x 5 mm with electronics)
- -20…80 °C range
- Up to 5-year lifetime
- Easy to integrate
Applications:
- Food freshness monitoring
- MAP Modified atmosphere packaging
- Logistics
- Breath analysis
- Hydrogen economy
- Industrial safety
