UV and UV + Blue or Blue/Green Detection

UV & UV / + Blue or Blue/Green Detectors

GenUV Products for the COVID-19 Pandemic

GenUV is the total solution specialist for UV detection technology. Their products are based on Gallium Nitride (GaN), Indium Gallium Nitride (InGaN) and Aluminum Gallium Nitride (AlGaN). They used this technology to develop a variety of products for UV detection.

Benefits of GaN, InGaN and AlGaN photodiode products from GenUV:

Stability of detector over time (Stability Data)
Low cost solution for high volume applications
UV PCB sub assemblies, compact and low cost
UV Probe assemblies for use in air and water
UV-Visible version for focusing on the Blue and Green spectral regions

GenUV has 16 bit resolution digital UV sensors (detectors) with variable gain amplification in 2.0mm x 2.3mm SMD COB packaging. These products are used in cellphones, wearable devices, IoT, watches, weather stations, bicycle navigation and gaming accessories. They have features to minimize power consumption.

To avoid damaging sensors during soldering and cleaning, consider using sockets.

GenUV detection products include:

UV Detector Components – GaN, InGaN & AlGaN
Digital UV Sensors
UV Visible Detectors – InGaN
UV Sensor Boards
UV Sensor Probes
UV Chips
UV Monitors / Meters / Radiometers

GaN, InGaN & AlGaN UV Detector Components

Part Number	Integrated TIA Circuit	UV Class	Spectral Range nm	Chip Size mm	Package	Window	Viewing Angle*
GUVV-T10GD		UVV InGaN	230 - 395	0.4x0.4	TO-46	Quartz	60
GUVV-T21GH	Yes	UVV InGaN	230 - 395	0.4x0.4	TO-5	Quartz	60
GUVV-T10GD-L		UVV InGaN	230 - 395	1.4x1.4	TO-46	Quartz	60
GUVV-S10SD		UVV InGaN	240 - 395	0.4x0.4	SMD3528	Silicone Encap	100

GUVA-T11GD		UVA GaN	220 - 370	0.4 x 0.4	TO-46	Quartz	60
GUVA-T21GH	Yes	UVA GaN	220 - 370	0.4 x 0.4	TO-5	Quartz	60
GUVA-T11GD-L		UVA GaN	220 - 370	1.4x1.4	TO-46	Quartz	60
GUVA-T21GD-U		UVA GaN	220 - 370	3.4x3.4	TO-39	Quartz	60
GUVA-S12SD		UVA GaN	240 - 370	0.4 x 0.4	SMD3528	Silicone Encap	100
GUVA-S12GD-C		UVA GaN	230 - 370	0.4 x 0.4	Ceramic	Quartz	120
GUVA-C22SD		UVA GaN	240 - 370	0.4 x 0.4	COB2418	Silicone Encap	100

GUVB-T11GD		UVB AlGaN	220 - 320	0.4 x 0.4	TO-46	Quartz	60
GUVB-T21GH	Yes	UVB AlGaN	220 - 320	0.4 x 0.4	TO-5	Quartz	60
GUVB-T11GD-L		UVB AlGaN	220 - 320	1.4x1.4	TO-46	Quartz	60
GUVB-T21GD-U		UVB AlGaN	220 - 320	3.4x3.4	TO-39	Quartz	60
GUVB-S31GD		UVB AlGaN	220 - 320	0.4 x 0.4	SMD Metal	Quartz	60
GUVB-S11SD		UVB AlGaN	240 - 320	0.4 x 0.4	SMD3528	Silicone Encap	100
GUVB-C21SD		UVB AlGaN	240 - 320	0.4 x 0.4	COB2418	Silicone Encap	100
		UVC AlGaN	210 - 280	0.4 x 0.4	SMD Metal	Quartz	60
GUVC-T10GD		UVC AlGaN	210 - 280	0.4 x 0.4	TO-46	Quartz	60
GUVC-T21GH	Yes	UVC AlGaN	210 - 280	0.4 x 0.4	TO-5	Quartz	60
GUVC-T10GD-L		UVC AlGaN	210 - 280	1.4x1.4	TO-46	Quartz	60
GUVC-T20GD-U		UVC AlGaN	210 - 280	3.4x3.4	TO-39	Quartz	60

GFUV-T10GD-L Far UV		AlGaN	100 - 240	1.24 x 1.24	TO-46	Quartz	60

Technical Notes:

GaN Stability Data
GaN Response Times
Sockets for the GaN UV Detectors
Sensor Part Numbering Plan

Application Notes:

Detector Package Types and Detailed Drawings
Detector Package Overview
UV Detector Field of View
UV Sensor Application Guide

Digital UV Sensor PCB

Part Number	UV Class	Spectral Range - nm	Output	Gain	Package
GUVx¹⁾-Syy²⁾GM	UVA, B, C & V	220 - 370	10 bit resolution	Programmable	13x13mm

InGaN UV + Blue or Blue/Green Visible Detectors

Part Number	Color	UV Class	Spectral Range - nm	Chip Size - mm	Package	Window
GVGR-T10GD	Green	UV-VIS InGaN	300 - 510	0.4x0.4	TO-46	Quartz
GVGR-S11SD	Green	UV-VIS InGaN	305 - 510	0.4x0.4	SMD3528	Quartz
GVBL-T12GD	Blue	UV-VIS InGaN	330 - 445	0.4x0.4	TO-46	Quartz
GVBL-S12SD	Blue	UV-VIS InGaN	345 - 445	0.4x0.4	SMD3528	Quartz
Surface Mount versions available

UV Sensor Boards – Custom PCBs only

Part Number	Type	UV Class	Size - mm
GUVx-T1yGM-LA2.1	Variable Gain	All	36 x 22 x 7

UV Sensor Probes

Part Number	Use In	Window	Power Req. - V	Output	Case Material	Size - mm
GUVx-S1yGC-12H3, 3LWH3	Air - Outdoor	Qz Dome	5, 6~26, 9~24	0~5V, 4~20mA	Al	78Dx55
GUVV-T10GC-H6	Air - Outdoor	Qz Dome	None	2mV/mW/cm²	Al	118Dx125H
GUVx-T1yGC-xLA2 & 5	Air - Indoor		DC 5, 6~26	0~5V	Al	55x30x15
LO2-Gxxx¹⁾-T1xx²⁾C-x³⁾ LO2	High Temp	200°C	6~26, 9~24	0~5V, 4~20mA	Al-60	1.5M long
LO2.1-GUVx¹⁾-T1x²⁾GC-x³⁾ LO2.1	High Temp	200°C	6~26, 9~24	0~5V, 4~20mA	Al-60	1.5M long
LOHT-GUVS-T10EC-x¹⁾LOHT	High Temp	250°C	6~26, 9~24	0~5V, 4~20mA	Al-60	1.5M long
LO3-GUVx-T1xGC-LO3	High Temp	300°C	5V Supply	Voltage Out	Al-60	1.5M long
LO3-GUVx-T1xGC-ILO3	High Temp	300°C	24V Supply	Current Out	Al-60	1.5M long
LO3-GUVx-T1xGC-LO3-24	High Temp	300°C	24V Supply	Voltage Out	Al-60	1.5M long
GUVx-T1yGC-3 & 12LW5, 5.1	Water	Quartz	DC 5 or 9~24	0~5V, 4~20mA	316-L SS	21Dx63
GUVx-T11GC-12LW6	Water	Quartz	DC 9~24	4~20mA	316-L SS	32Dx96
GUVC-T11GC-14LW8	Water	Quartz	DC 9~24	4~20mA	316-L SS	14Dx67
GUVC-T11GC-14LW8.2	Water	Quartz	DC 9~24	4~20mA	316-L SS	14Dx67
GUVx-T1yGC-5LW9	Water	Quartz	DC 5	0~5V	316-L SS	23Dx41.5
GUVx-T1yGC-3 & 18LW10	Water	Quartz	DC 5 or 9~24	0~5V, 4~20mA	316-L SS	30Dx62
GUVC-T11GC-4 & 17LW11	Water	QZ Dome	DC 6~26	0~5V, 4~20mA	316-L SS	42Dx81
x : V(400nm), A(370nm), B(320nm), C(280nm) y : Improvement Level Numbering (0~9, A~Z)

Application Notes:

UV Probes for Water Treatment
UV Probe and Monitor Overview
UV Sensor and Monitor Overview
UV Sensor Application Guide

Hydrogen Flame Detector Probes

Part Number	Use In	Temp Range	Monitoring Wavelength	Output	Case Material	Size - mm
GSE-HF01-P	H2 Flame Monitoring	to 85 °C	310nm	0-5V	SS	32Dx60

Application Notes:

H₂ Flame Detector Overview

UV Chips

Part Number	UV Class	Chip - mm
GUVV-CS0PD	UV-InGaN	0.4x0.4
GUVA-CS1PD	UVA - GaN	0.4x0.4
GUVB-CS1PD	UVB - AlGaN	0.4x0.4
GUVC-CS0PD	UVC - AlGaN	0.4x0.4

GUVV-CS0PD-L	UV-InGaN	1.4x1.4
GUVA-CS1PD-L	UVA - GaN	1.4x1.4
GUVB-CS1PD-L	UVB - AlGaN	1.4x1.4
GUVC-CS0PD-L	UVC - AlGaN	1.4x1.4

GUVV-CS0PD-U	UV-InGaN	3.4x3.4
GUVA-CS1PD-U	UVA - GaN	3.4x3.4
GUVB-CS1PD-U	UVB - AlGaN	3.4x3.4
GUVC-CS0PD-U	UVC - AlGaN	3.4x3.4

2D UV Sensor Arrays

GUVx¹⁾-Sxx²⁾GC-SA³⁾

10x10 (100 sensors)

UV Meters / Radiometers

GenUV offers a variety of UV meters and radiometers for monitoring broadband UV, UVA, UVB and UVC: Handheld portable, Benchtop, 16 channel version, outdoor meter with large informational display.

Model No.	Type	Supply Voltage	Spectral Range nm
UV Radiometer MG-01	Wall Mounted	9 VDC/ AC	UVV, UVA, UVB, UVC
UV Radiometer MG-02	Panel Meter	100 - 240 VAC	UVV, UVA, UVB, UVC
UV Radiometer MG-04	3 Channel Panel Meter	100 - 240 VAC	UVV, UVA, UVB, UVC
UV Radiometer MG-05	Panel Meter	100 - 240 VAC	UVV, UVA, UVB, UVC
UV Radiometer MG-11	Integrated Panel Meter	100 - 240 VAC	UVA, UVB, UVC

Portable & Cell Phone UV Meters

Cell Phone UV Meters

Model No.	Part No.	Type	Supply Voltage	Spectral Range nm

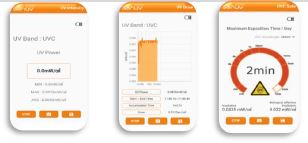

Smart UV Checker II	GUVC-S10SUC2.0-LA10	Connects to Cell Phone	N/A	220-280
Smart UV Bluetooth Checker	GUVC-S10SUC2.0BT-LA11	Bluetooth to Cell Phone	Battery	220-280

Portable UV Meters

Model No.	Part No.	Type	Supply Voltage	Spectral Range nm
UV Radiometer MG-08		Total UV Meter	DC 9V Battery	230 ~ 395
		UVC Meter	DC 9V Battery	220 ~ 280
		UVC LED Meter	DC 9V Battery	220 ~ 320
		Visible Meter	DC 9V Battery	330 ~ 445
UV Radiometer MG-09		UV Probe Replacement Type	DC 9V Battery	220 ~ 445
UV Disk Radiometer MG-10		Disk Shaped	DC 9V Battery	220 ~ 395
Far UV Radiometer MG-07 MG-07 Manual	GFUV-T10GS7.1-L	Excimer Lamp Monitoring	DC 9V Battery	100 ~ 222

Outdoor UV Index Meters

Model No.	Part No.	Type	Supply Voltage	Spectral Range nm
AG02	GUVB-S11GS-AG02.1	Outdoor UV Index Indicator	100 - 240 VAC	220 - 395
AG03 (Std., Solar or Comm)	GUVB-S11GS-AG03.x	Outdoor UV Index Meter	100 - 240 VAC	220 - 395

Cell Phone UV Checker and Meter Sensors and Applications

Model No.	Part No.	Type	Supply Voltage	Spectral Range nm
Smart UVI Checker	GUVA-S12SC-LM01	Cell Phone Application	Cell Phone	240 ~ 360
Smart UVB Meter	GUVB-T11GC-LM02	Cell Phone Application	Cell Phone	220 ~ 320
Smart UVC Meter	GUVC-T10GC-LM02	Cell Phone Application	Cell Phone	220 ~ 280

Applications Notes:

UV Probe and Monitor Overview
UV Sensor and Monitor Overview
UV Sensor Application Guide
Sockets for the GenUV Detectors
Outdoor UVI Monitoring Guide
Far UV Sensors

Portable UV Meters
UV Sensor Probes for Water
UV Probes for Water Treatment
UV Sensors with Large Chip Sizes

Technical Notes:
Detector Performance Terminology
